For any mechanic, fabricator, or serious DIYer, the best die grinder is a compact powerhouse that solves problems no other tool can. Often overlooked in favor of its bulkier cousins, this versatile tool is a master of detail, capable of everything from aggressive porting and polishing to precision deburring and cutting. If you need to grind, sand, polish, or shape material in tight spaces, a die grinder is the indispensable hero you need in your toolkit.
What Is a Die Grinder & Why Does It Matter?
At its core, a die grinder is a small, high-speed rotary tool designed for precision work. Unlike an angle grinder, which uses large-diameter discs for heavy material removal on flat surfaces, a die grinder uses small-diameter bits, burrs, and wheels held in a collet. Its pencil-like grip and incredible RPM (often exceeding 20,000) give you the control needed to work on intricate shapes and in hard-to-reach areas.
Its real value comes from its versatility. With a simple bit change, it can transform from a metal-shaping tool to a wood-carver or a rust-remover. It’s the tool you grab when you need finesse, not just brute force.

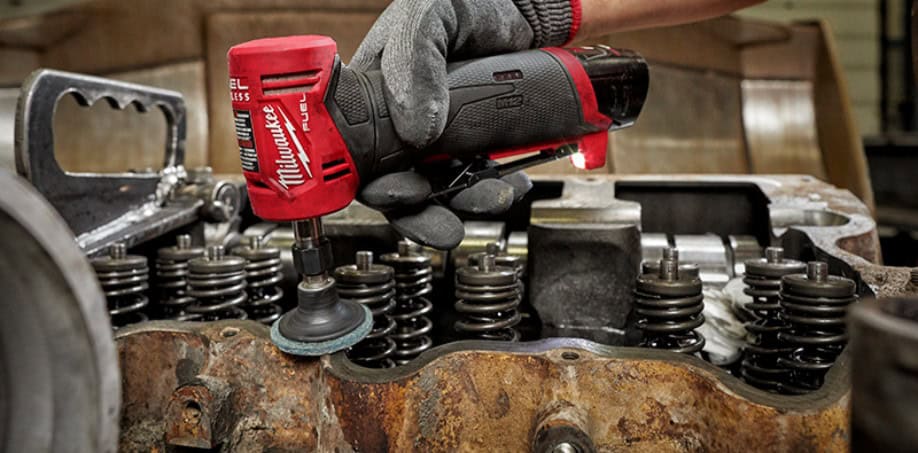

Main Uses & Applications for a Die Grinder
Originally designed for finishing the small details of tool and die making, the modern die grinder is a multi-purpose beast. Here’s where it shines:
- Metalworking and Fabrication: This is its natural habitat. It’s perfect for light weld grinding, breaking sharp edges, and porting engine cylinders. Fabricators use it constantly for removing rust, cleaning up weld spatter, and deburring freshly cut metal for a smooth, safe finish.
- Automotive Repair: In an auto shop, a die grinder is essential. Use it with a cutting wheel to remove damaged sheet metal, or with a conditioning disc to strip paint and rust from surfaces before making repairs. Its size is ideal for the tight confines of an engine bay or chassis.
- Woodworking and Carving: With carbide burrs, woodworkers and artisans use die grinders to carve intricate designs, shape contours, and sand hard-to-reach spots where a normal sander can’t go.
- Polishing and Finishing: Attach a polishing wheel, and a die grinder can bring stainless steel or aluminum to a mirror shine, smoothing out welds for a seamless look.

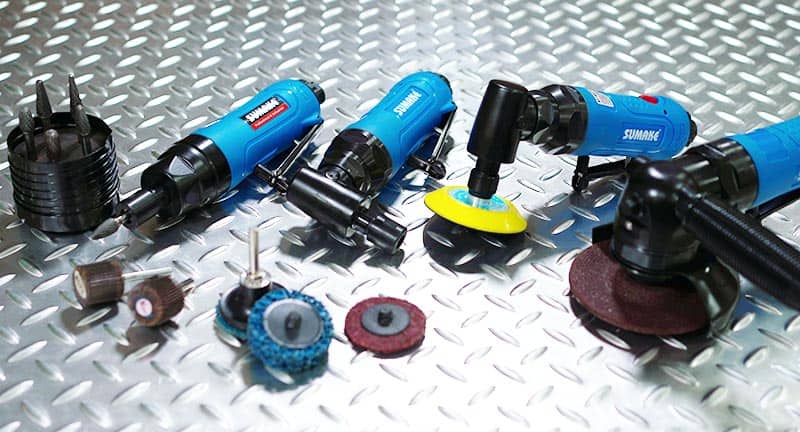

Types of Die Grinders: Choosing the Right Tool for the Job
Die grinders come in a few key variations. Choosing the right shape and power source is the first step to getting the perfect tool for your needs.
Straight vs. Right-Angle Die Grinders
The body style determines how you access your work. A straight die grinder offers a direct line of sight, perfect for detailed carving or deburring on a workbench. A right-angle die grinder has a head perpendicular to the body, allowing you to reach inside wheel wells or under a dashboard where a straight tool won’t fit.
Power Sources: Pneumatic vs. Cordless vs. Corded
How your tool is powered dramatically affects its performance and portability. Here’s a quick breakdown:
| Power Source | Pros | Cons |
|---|---|---|
| Pneumatic (Air) | Powerful, lightweight, runs cool, durable for all-day use. | Requires a powerful and expensive air compressor; hose limits mobility. |
| Cordless (Battery) | Ultimate portability, no hoses or cords, brushless motors are powerful. | Limited by battery runtime; can be heavier. |
| Corded (Electric) | Consistent, unlimited power; no need for a compressor or batteries. | Cord can be cumbersome and a trip hazard; less mobile. |

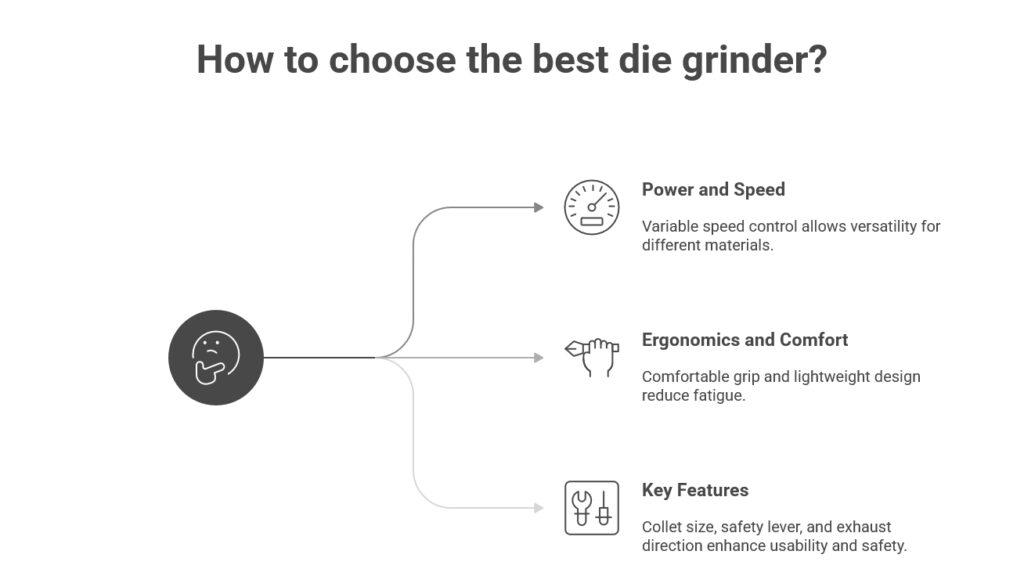

How to Choose the Best Die Grinder: A Buyer’s Guide
When you’re ready to buy, focus on these key factors to find the tool that’s right for you.
1. Power and Speed (RPM)
Look for speeds between 20,000 to 25,000 RPM. More importantly, a variable speed control is a must-have feature, allowing you to dial down the speed for plastics or wood and crank it up for hard metals. This versatility is crucial for getting professional results.
2. Ergonomics and Comfort
You’ll be holding this for a while, so comfort is key. Look for a model with a non-slip, ergonomic grip that feels balanced in your hand. A lighter tool will reduce fatigue, especially when working overhead.
3. Key Features to Look For
- Collet Size: The collet holds the bit. The most common size is 1/4-inch, which accepts the widest range of accessories. Some also include a 1/8-inch collet for smaller, Dremel-style bits.
- Safety Lever: A lock-off throttle lever is a critical safety feature that prevents accidental start-ups.
- Exhaust Direction: A rear or side exhaust that directs air away from your face and your workpiece is a major quality-of-life feature.
Our Top Die Grinder Picks for 2025
While every job is different, these models are trusted by professionals for their performance, features, and reliability.
1. Milwaukee M12 FUEL™ 2485-20 Right Angle Die Grinder
This cordless, right-angle die grinder is a top choice for professionals who value flexibility. Its POWERSTATE™ brushless motor provides up to 0.3 HP, delivering more power than many pneumatic rivals. With a 4-mode variable speed control up to 24,500 RPM and a compact, lightweight design, it offers unmatched control and access in tight spaces.
Milwaukee M12 FUEL Right Angle Die Grinder – Best Overall for its blend of cordless power, compact ergonomics, and advanced speed control.
- 20% more power than Pneumatic
- 0.3 HP motor output
- 3-mode RPM Control
- Greater mobility and access
- Optimum performance with 2 in. accessories
2. Ingersoll Rand 301B Right Angle Die Grinder
A true “old reliable,” this pneumatic workhorse is a staple in professional shops. Its powerful 0.25 HP motor spins at 21,000 RPM, while its durable all-ball bearing and aluminum construction ensure a long life. It’s lightweight, includes a safety lock-off throttle, and provides excellent value, making it perfect for long shifts.
Ingersoll Rand 301B Die Grinder – Best Pneumatic Workhorse for its proven durability, lightweight design, and exceptional value.
- SMALL + LIGHT: Ingersoll Rand Air Die Grinder 301B has a light but sturdy design and weighs only 1.02 lbs; It provides easy operation and better access to tight spots
- 0.25 HP MOTOR: It is powered by compressed air, not electric, and comes equipped with a 0.25 horsepower motor, a 1/4-inch collet, and a self-locking throttle for extra safety. With 21,000 RPM, it will power through difficult jobs
- BALL BEARING CONSTRUCTION: Durable ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life
- ALUMINUM HOUSING: It has a strong aluminum housing that withstands the toughest operating conditions, and the front exhaust keeps your work surface clean
- APPLICATIONS: Use this air die grinder as a handheld power rotary tool for grinding, cutting, polishing, and more
3. DEWALT DCG426B 20V Cordless Die Grinder
This heavy-duty cordless grinder from DEWALT is all about power. Its efficient brushless motor delivers a staggering 25,000 RPM, making it ideal for the most demanding jobs. Key features include a variable speed trigger for precise control, multiple handle options for a comfortable grip, and built-in LED lights to illuminate your work area.
DEWALT DCG426B 20V Cordless Die Grinder – Best for Cordless Power thanks to its high-performance brushless motor and pro-grade features.
- DEWALT built brushless motor for efficient performance and runtime of the die grinder
- The electric die grinder has up to 25,000 RPM with variable speed trigger
- Illuminate dark work areas with LEDs at the nose of the DEWALT die grinder
- Multiple handle grasping options with dual-position rocker switch
4. Makita GD0601 Straight Die Grinder
The Makita GD0601 is a powerful and reliable corded electric model designed for durability. It features a strong 3.5 amp motor fixed at 25,000 RPM for fast material removal. Its robust aluminum housing and a protective zig-zag varnish that seals the motor from debris give it an exceptionally long life. Vent slots are designed to direct exhaust away from the user.
Makita GD0601 Straight Die Grinder – Best Corded Durability due to its rugged build and superior motor protection.
- Powerful 3.5 AMP motor delivers 25,000 RPM to handle the most challenging applications
- Lower noise at 73dB(A)
- Small diameter barrel grip for added comfort
- Directional air-flow vents channel the tool's air output away from the user's face
- Round-shaped collet nut is engineered to stops damages/scratches to workpiece
5. AirCat Straight Die Grinder
The AirCat stands out for one primary reason: exceptionally quiet operation. Its patented quiet tuned exhaust system reduces the noise level down to 82 dB without sacrificing power. It features superior steel-grade internal bearings for a longer life and a “feather trigger” that offers excellent speed control, making for a much more comfortable work environment.
AirCat Straight Die Grinder – Best Quiet Operator for professionals who want pneumatic power without the excessive noise.
- Reversible Die Grinder: Offers quiet, efficient power; 20,000 RPM
- Speed Control Switch: Located under the trigger for added control
- Forward/Reverse Switch: Located on top of the grip for easy directional changes
- Grinder: Ergonomic handle for the user's ultimate comfort; .75 HP motor
- AIRCAT Line: The most significant advances in the performance of pneumatic power tools.
6. XtremepowerUS 41707 Right Angle Die Grinder
Praised for its versatility, this pneumatic grinder is great for a range of applications from heavy grinding to fine polishing. It delivers a free speed of 20,000 RPM with stepless speed control. The 90-degree head allows excellent access to angled jobs, and its rear exhaust safely diverts metal chips away from the operator.
XtremepowerUS 41707 Right Angle Die Grinder – Editor’s Choice for its versatile design, rear exhaust, and great all-around performance on metal.
- Air die grinder kit is ideal for smoothing sharp edges, debarring, polishing and grinding applications
- Rear exhaust feature keeps diverts dangerous metal chips away from the operator
- 90-degree head allows flexibility in many applications, for reaching tight or angled grinding
- Stepless speed control knob switch, according to different purposes, choose different speed. The platen type starts and stop switch is safer and more reliable
- Free Speed (RPM): 20,000; Air Inlet NPT: 1/4"; Average Air Consumption: 7CFM @ 90PSI
7. Metabo GE710 Plus Die Grinder
This durable corded grinder emphasizes power and user safety. Its Metabo long-life motor generates a massive variable speed range of 10,000 to 30,500 RPM. It’s packed with safety features, including an electronic safety shutdown, restart protection, and overload protection. The long grinding spindle makes it ideal for working in deep or difficult-to-reach areas.
Metabo GE710 Plus Die Grinder – Best for Safety & Reach, featuring a powerful motor, top-tier safety electronics, and a long spindle.
- Electronic safety shutdown of the motor if the tool jams
- Thermal overload protection
- Auto-stop carbon brushes
- Hardened and ground collet chuck for precise concentricity of tools in use
- Collet bore of the collet chuck 1/4 "
Safety & Maintenance Tips
A die grinder spins at incredible speeds, so safety is non-negotiable.
- Always Wear PPE: This is the most important rule. You must wear safety glasses or a face shield, hearing protection, and a dust mask.
- Let the Tool Work: Never force the tool into the material. Applying excessive pressure can cause dangerous kickback and ruin your workpiece. Use a light touch and let the RPM do the cutting.
- Check RPM Ratings: Ensure your attachment’s RPM rating is higher than your grinder’s maximum speed. An underrated disc can shatter during use.
- Maintenance: For pneumatic grinders, add a few drops of air tool oil into the inlet daily. For all types, keep the air vents clean of dust and debris to prevent overheating.
Frequently Asked Questions (FAQs)
1. What’s the difference between a die grinder and an angle grinder?
An angle grinder uses large discs at a 90-degree angle for heavy grinding on large, flat surfaces. A die grinder uses small bits in a pencil-like grip for detailed, precision work in tight or curved areas. We compare them in detail in our Angle Grinder vs. Die Grinder guide.
2. Can you use a die grinder for cutting metal?
Yes, with a proper cut-off wheel attachment. It’s excellent for cutting small-diameter metal like bolts, sheet metal, and exhaust pipes in tight spaces where a larger tool won’t fit.
3. Do I need a special air compressor for a pneumatic die grinder?
You need a compressor that can supply enough airflow (CFM) at the required pressure (PSI), typically around 4-6 CFM at 90 PSI. Using an underpowered compressor will result in poor performance.
4. Are Dremel bits compatible with a die grinder?
Usually, yes, provided you have the right collet. Dremel bits typically have a 1/8-inch shank. If your die grinder comes with or accepts a 1/8-inch collet, you can use them for very fine detail work.
5. Why is my die grinder getting hot?
For electric or cordless models, overheating is often caused by blocked air vents or by forcing the tool too hard for too long. For pneumatic tools, a lack of proper lubrication can cause excess friction and heat.
Conclusion: A Must-Have for Precision Work
From the auto shop to the woodshop, a die grinder fills a crucial gap in any toolkit. It provides the control and access needed for professional-level finishing, cleaning, and shaping that larger tools simply can’t match. Whether you choose a cordless model for freedom or a pneumatic one for power, investing in a quality die grinder will elevate your work and save you countless hours of frustration.
