Last updated: February 2026. Pricing and specs may change; always check the latest details before buying.
How This Review Evaluates the TOPDON TC004
This review is built to mirror how working professionals actually use thermal cameras in the field. The evaluation focuses on core factors that matter day to day: image clarity on panels and walls, sensitivity to small temperature differences, ease of navigating menus with gloves, battery life across multiple inspections, and how smoothly images move into reports.
The analysis synthesizes manufacturer specifications, verified third-party testing data, long-term user feedback across professional forums and review platforms, and realistic job-site scenarios based on how thermal cameras are typically deployed in electrical, HVAC, and inspection work. Example scenarios in this guide reflect how the TC004 is commonly used in residential and light commercial work: scanning breaker panels, checking underfloor heating, verifying radiator balance, and hunting drafts. The goal is to give a practical, trade-focused view of what the TC004 can and cannot do—rather than just repeating a spec sheet.

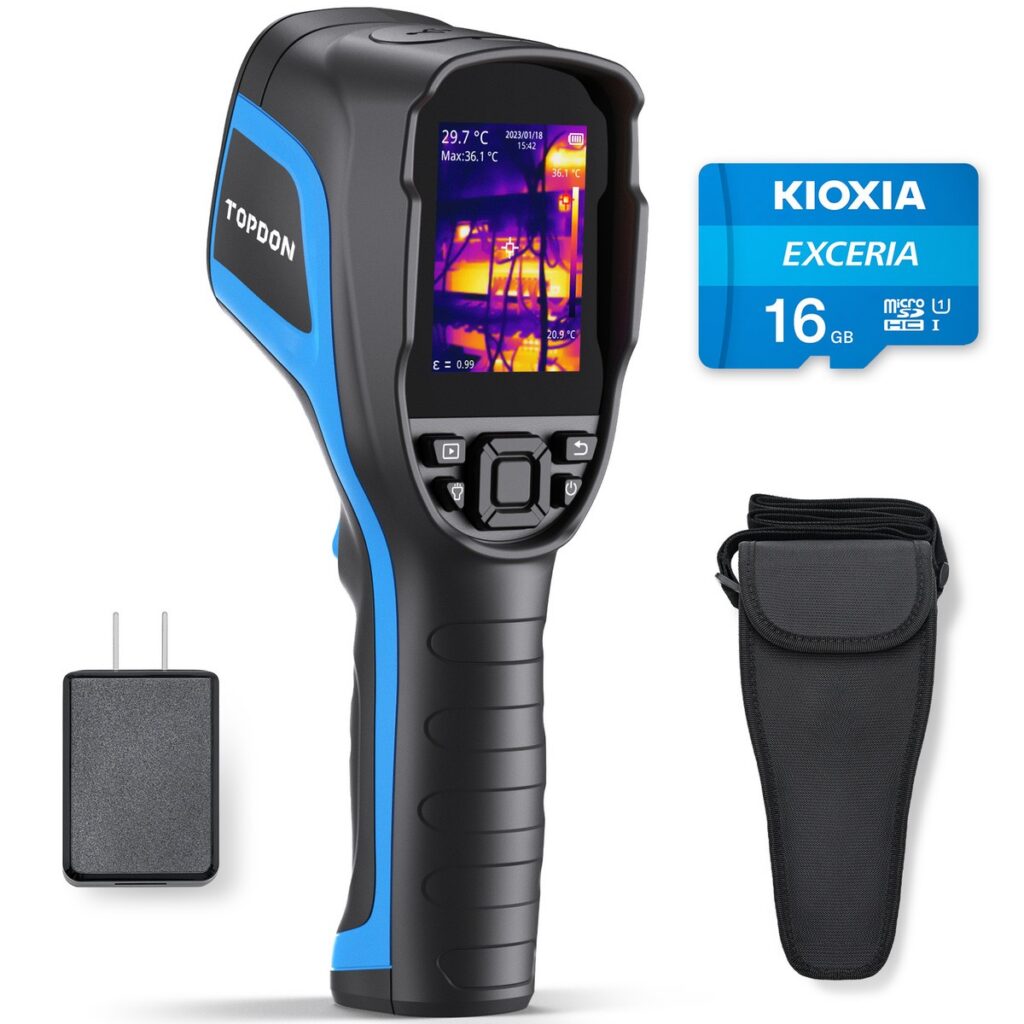

TOPDON TC004 at a Glance
| Aspect | Highlight |
|---|---|
| IR resolution | 256 × 192 thermal sensor, enhanced to an effective 320 × 240 through image processing. |
| Temperature range | -20 to 350 °C (−4 to 662 °F), covering most electrical, HVAC, and building diagnostics tasks. |
| Sensitivity (NETD) | < 40 mK, able to show small temperature differences and subtle cold or hot spots. |
| Field of view | Approx. 52.5° × 39.5°, wide enough for full panels and wall sections in one frame. |
| Refresh rate | 20 Hz live refresh for smooth panning and scanning. |
| Battery life | Up to around 12 hours of runtime on a full charge. |
| Protection | Rugged housing with IP54 rating and drop resistance around 2 m (about 6 ft). |
| Storage | Includes a microSD card (often 16–32 GB), storing thousands of images and multiple video clips. |
| Connectivity | USB-C for charging and data transfer, plus PC analysis/reporting software support. |
Rating Snapshot
Is the TOPDON TC004 Right for You?
The TC004 is designed for users who need more than a casual gadget. It targets trades and serious DIYers who depend on thermal imaging to make work safer, faster, and more professional.
Great Fit If You:
- Work as an electrician, HVAC technician, home inspector, solar installer, or maintenance tech and want a dedicated handheld camera rather than a phone accessory.
- Want noticeably better resolution and sensitivity than entry-level 120 × 90 or 160 × 120 cameras and most cheap phone modules.
- Prefer long battery life, a rugged housing, and simple standalone operation that does not depend on a smartphone.
- Primarily deal with temperatures within the -20 to 350 °C range, such as breakers, motors, radiators, pipes, and building envelopes.
Consider Other Options If You:
- Regularly work with very high-temperature industrial equipment that exceeds 350 °C and need more headroom.
- Rely on Wi‑Fi/Bluetooth and cloud-sync workflows for high-volume reporting and team collaboration.
- Prefer an ultra-compact, always-in-pocket phone-based module over a pistol-grip handheld form factor.
Quick Pick: Already convinced the TOPDON TC004 fits your work?
Check current price and availability on Amazon »

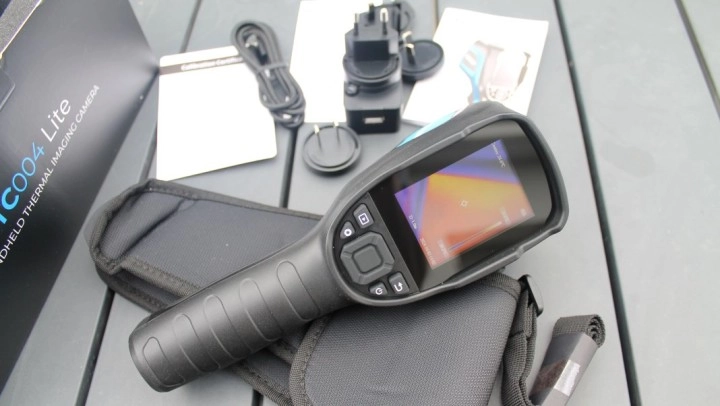

Important: TC004 vs TC004 Lite
TOPDON also sells a TC004 Lite, and the similar naming can easily confuse buyers. The Lite version is a different model with its own trade-offs in resolution, zoom behavior, and temperature range, generally aimed at users who prioritize higher maximum temperature tolerance over other features.
This review focuses on the standard TC004 unless the Lite version is explicitly mentioned. When comparing models or reading spec sheets, always confirm whether the information refers to the TC004 or the TC004 Lite to avoid mixing up capabilities and making the wrong purchase.
- High Resolution, Accurate Measurement: TOPDON TC004 Thermal Camera has 256x192 ultra-high resolution, thermal sensitivity <40mk, temperature resolution up to ±1°F, three temperature measurement modes center point / maximum temperature / minimum temperature, fast 25Hz frame rate and temperature range -4°F to 662°F, high resolution. Accurate measurement allows you to detect potential problems early and diagnose problems reliably!
- Free PC Software Upgrade: TOPDON TC004 Infrared Camera can be connected to a Windows PC (Not compatible with Mac) via USB for online analysis, real-time detection of object temperature changes, support for 3D imaging, point-line surface temperature measurement. Up to 32GB memory, support memory expansion, you can also stream the device in real time to a laptop or computer for offline temperature measurement, analyze the saved images, export data reports, and dig deeper into the data.
- Support Video Recording, Super Battery Life: powerful one-touch photo viewing and video recording function, so you can share the photos taken to your computer. The built-in 5000Ah rechargeable Li-ion Battery can support up to 12 hours of continuous operation, with a long life span that allows you to handle high-intensity measurement work with ease. Greatly meet the power monitoring, boiler inspection, house maintenance, circuit testing, HVAC testing and other types of use scenarios!
- Multiple Functions, More professional: TC004 Thermal Imager with high and low temperature alarm function, when the temperature is out of range, the audio alarm and warning light will remind you. Including 4 kinds of color palette, choose the ideal color scale for your work - white hot, black hot, iron red, rainbow. LED work light allows you to reach the dark and hard to reach areas, automatic shutdown function to ensure that you will not run out of power in the important work.
- Sturdy and durable: TOPDON TC004's ergonomic grip handle makes it easy to grasp, and it is designed with a tripod screw hole 1/4 adapter - convenient and fast installation and fixing, fixed point measurement, 2 meters drop resistance design. Provide 1-year warranty and lifetime technical support. The package includes: thermal imager*1, 32G memory card*1, data cable*1, protection bag*1, manual*1, 5V charger*1.

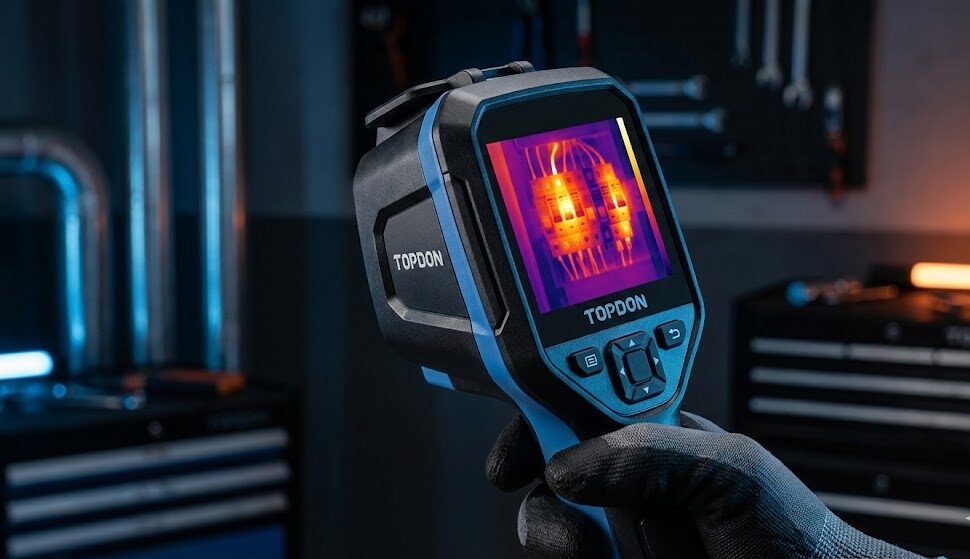

Design, Build & Everyday Handling

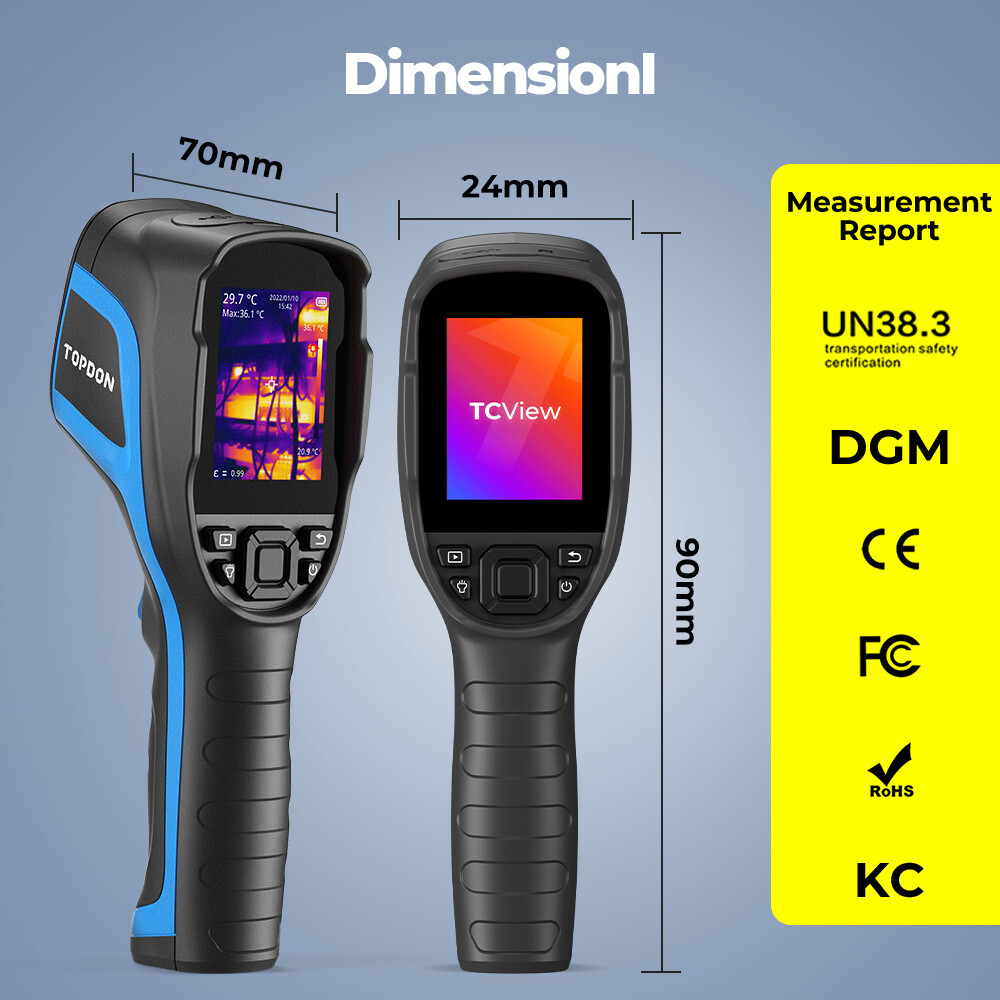

The TC004 uses a pistol-grip design with a 2.8-inch color display, giving it the familiar feel of a conventional job-site tool rather than a delicate electronic gadget. The housing is rubberised and rated to IP54, which provides protection against dust and splashes, and it is drop-tested to around 2 meters, making it suitable for ladders, service vehicles, and rough environments.
The control layout is straightforward: a trigger-style button captures images, while a small cluster of navigation keys below the screen handles menus, palettes, and measurement tools. The design lets users operate the camera one-handed while keeping the other hand free to move cables, open panels, or hold onto a ladder.
An integrated LED work light helps in dark basements, attics, and electrical rooms, reducing the need for a separate flashlight in many situations. A standard 1/4-inch tripod thread in the base allows the TC004 to be mounted for static monitoring or stable thermal video recording when both hands are needed elsewhere.
Image Quality & Thermal Performance

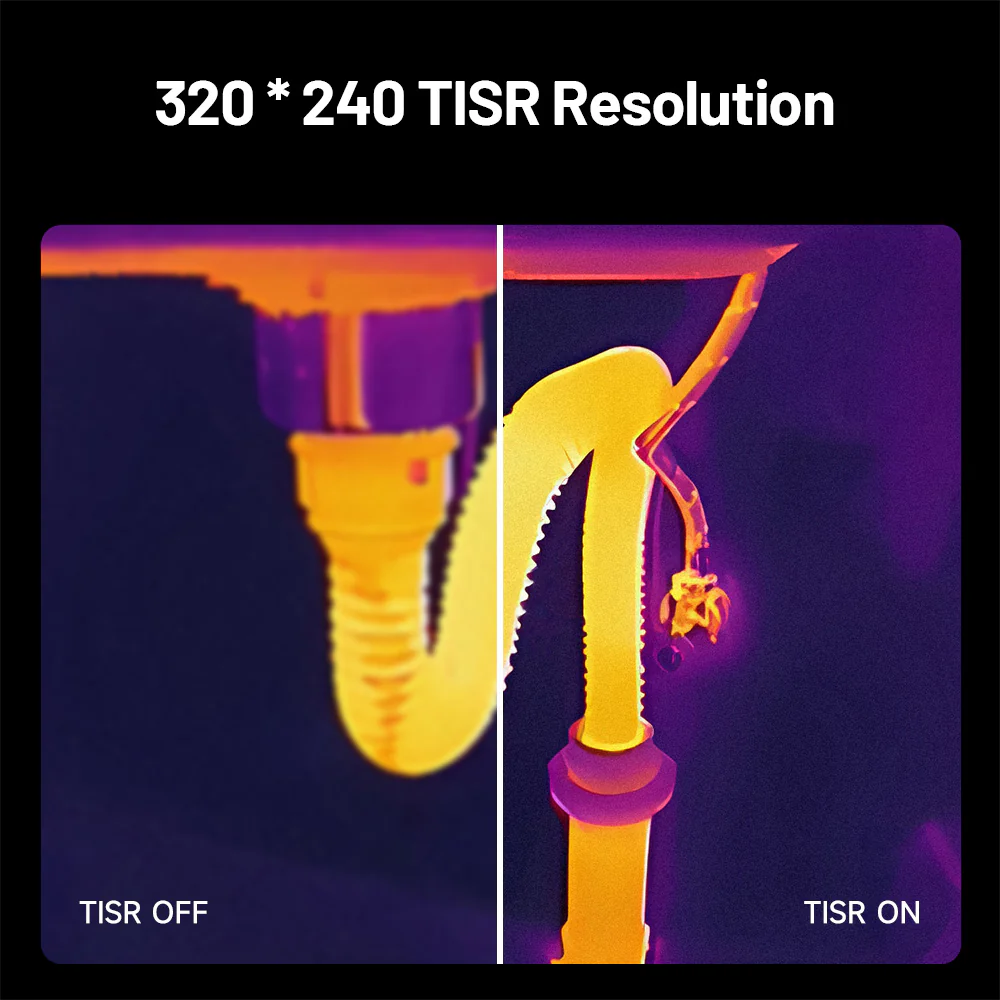

At the heart of the TC004 is a 256 × 192 thermal sensor, which is enhanced through onboard processing to produce an effectively sharper 320 × 240 image. In practice, this means that breaker labels, pipe outlines, and structural elements appear more defined than they do on many 160 × 120 budget units.
With NETD sensitivity under 40 mK, the camera reveals small temperature differences that matter in real diagnostics. Subtle cold strips from missing insulation, slightly warmer breaker terminals, and barely cooler radiator sections are easier to distinguish, even when working in mixed ambient conditions.
With a field of view around 52.5° × 39.5°, the TC004 can typically capture an entire electrical panel, window wall, or radiator in a single frame. This is particularly helpful when scanning quickly through multiple rooms or panels. A 20 Hz refresh rate keeps the thermal image smooth while panning, so the display does not feel laggy when walking down a corridor or sweeping across a row of equipment.
In a typical residential panel scenario, the TC004 clearly shows one breaker running roughly 10–15 °C hotter than its neighbors, flagging a potential load or connection issue that would be invisible to the naked eye. On underfloor heating, pipe paths commonly become visible within about 30 seconds of warm-up, making it straightforward to check coverage and detect cold gaps that suggest blockages or air pockets.
Temperature Range, Accuracy & Measurement Tools
The TC004 measures temperatures from roughly -20 to 350 °C, a span that comfortably covers most residential and light commercial use cases. Within this range, it can handle breaker panels, motors, transformers, radiators, hot water pipes, supply and return ducts, floor heating loops, and building envelope checks without hitting the upper limit.
Accuracy is typically rated at around ±2 °C or ±2% of reading, with a 0.1 °C display resolution. In trade work, this level of precision is more than adequate for identifying problem areas and verifying repairs, especially when comparing relative temperatures across components rather than relying on a single absolute number.
Users can adjust emissivity to match different materials, which is critical for getting realistic readings on shiny metals versus painted or matte surfaces. Reflective metals, in particular, can mislead any thermal camera if emissivity and viewing angle are not handled carefully, so a short learning period is recommended for new users.
The TC004 provides multiple measurement tools, including central, hot, and cold spot markers, lines for measuring gradients across surfaces, and area boxes that calculate the min/max/average temperature within a region. Configurable high and low temperature alarms can alert the user when equipment crosses a threshold, helping catch overheating components before they fail.
Battery Life, Storage & Workflow
Battery life is one of the TC004’s strongest selling points. The internal battery delivers up to approximately 12 hours of runtime, making it realistic to complete several full inspections or a full day of job-site spot checks on a single charge. For many users, this means charging overnight and rarely worrying about power in the field.
Storage is handled by an included microSD card, typically 16–32 GB depending on the bundle, which is enough to store thousands of thermal images and multiple video clips. Images and videos can be accessed by removing the card or by connecting the camera via USB-C to a computer.
There is no built-in Wi‑Fi or Bluetooth, so data transfer relies on cable or memory card. For high-volume reporting workflows that depend on cloud sync and mobile apps, this can feel slower. For many independent tradespeople and small teams, USB and SD card transfers are reliable and acceptable trade-offs.
TOPDON provides PC analysis and reporting software that allows users to adjust color palettes and temperature scales, add markers and annotations, run line and area analysis, and export images into PDF-style reports. Firmware and software updates are made available through the company’s support channels, so it is worth checking periodically for new features or bug fixes.
New users can also lean on the included manual and online tutorials to learn the basics of thermal interpretation and common pitfalls, such as reflections from shiny surfaces or misinterpretation of moisture issues. A typical workflow is to capture images on-site with hot and cold markers enabled, then connect the camera to a laptop back at the office to annotate and generate client-ready reports.
Real-World Testing: Where the TC004 Excels
Electrical & Electronics Work

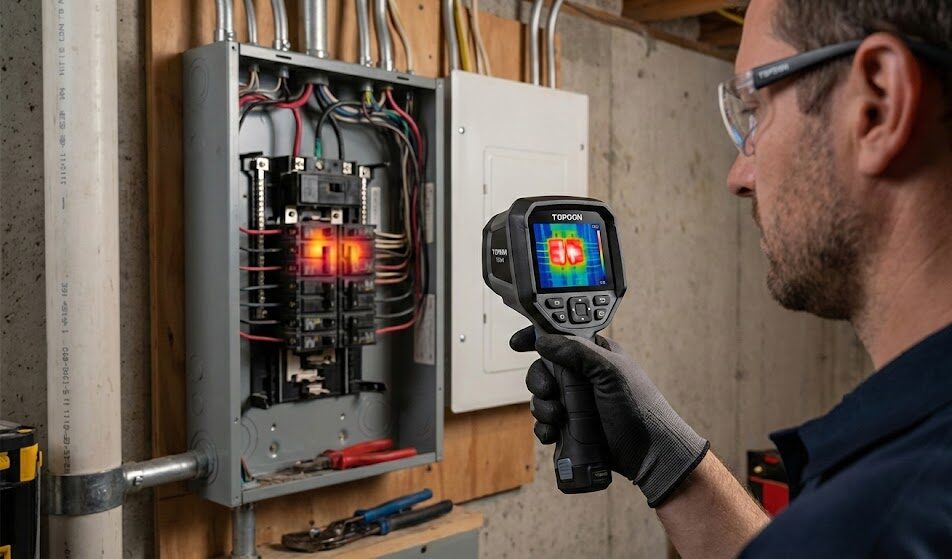

In electrical work, the TC004 is well suited to scanning residential and light commercial panels for hot breakers, loose terminals, and overloaded circuits. The 256 × 192 resolution makes it easier to distinguish individual breakers and cable runs compared with lower-resolution cameras, reducing the risk of misidentifying the problem area.
It is also useful on transformers, contactors, and motor terminals to spot unusual heating patterns while equipment is under load. On electronics and power supplies, the camera can help locate components that run significantly hotter than surrounding parts, which often indicates stress or impending failure.
On a typical service call, a technician can quickly sweep a panel and spot a neutral bar connection that reads about 10 °C hotter than similar connections nearby, prompting a closer mechanical inspection. This kind of subtle but visible difference is where a higher-resolution camera like the TC004 earns its keep.
HVAC & Plumbing
For HVAC and plumbing, the TC004 makes it easy to verify supply and return temperatures on vents, radiators, and hydronic loops. A quick pass over ductwork in an attic can reveal poor insulation or leaking connections, while radiators can be checked for cold sections that indicate trapped air or sludge buildup.
Underfloor heating is another strong use case. After turning on a system, the TC004 typically shows the layout of hot water pipes within about half a minute, helping confirm coverage and locate cold patches. This reduces the need for guesswork, especially in homes where original pipe layout diagrams are unavailable.
Building Inspection & Maintenance
In building inspections, the camera is valuable for locating likely cold bridges, missing insulation, and areas that may be affected by moisture. Around windows and doors, it highlights drafts and thermal leaks that contribute to energy loss and occupant discomfort. Along exterior walls, temperature patterns can reveal studs with missing insulation or poorly insulated junctions.
Thermal imaging alone cannot confirm moisture, but it is excellent for narrowing down suspicious areas that can then be checked with moisture meters. Seasonal conditions also matter: in cold weather, moving the camera between warm interior spaces and cold outdoor conditions can cause condensation on lenses; allowing the camera to acclimatize reduces this risk.
Where the TOPDON TC004 Falls Short
No thermal camera is perfect, and the TC004 has a few limitations that some users will notice. The most obvious is connectivity: there is no built-in Wi‑Fi or Bluetooth, so all image transfer happens via USB-C cable or SD card. For inspectors and teams that rely on instant cloud uploads and mobile sharing, this adds an extra step to the workflow.
The maximum temperature of 350 °C is more than enough for household and light commercial electrical and HVAC work, but it may not be sufficient for certain industrial processes, high-temperature exhaust systems, or furnace inspections. Users in those niches may need a higher-range camera or an alternative model like the TC004 Lite or other industrial-focused devices.
There can also be occasional friction with PC software and connectivity depending on the operating system and drivers used, especially if updates are not kept current. Finally, like any serious thermal camera, the TC004 requires some learning around emissivity, reflections, and how to interpret patterns correctly; misreading a shiny metal surface as overheated is a common beginner mistake.
Despite these limitations, the TC004 still offers one of the most compelling blends of image quality, runtime, and ruggedness in its price bracket, particularly for electricians, HVAC professionals, and home inspectors who do not need extreme temperature ranges or wireless cloud workflows.
Alternatives to Consider
TOPDON TC004 vs FLIR Handhelds vs Phone-Based Modules
| Feature | TOPDON TC004 | Budget FLIR Handheld | Phone-Based Thermal Module |
|---|---|---|---|
| Resolution | 256 × 192 | Often around 160 × 120 in similar price bands | Varies, many 160 × 120 or lower |
| Temp range | -20 to 350 °C | Similar or slightly different depending on model | Often narrower or optimized for lower temperatures |
| Connectivity | USB-C, microSD, PC software | USB, sometimes Wi‑Fi/app integration | Phone-dependent, app-based sharing |
| Battery/runtime | Up to ~12 hours internal | Typically 3–5 hours | Uses phone battery + module power |
| Form factor | Rugged handheld, pistol grip | Handheld | Tiny module, relies on phone |
| Typical price | Mid-range | Often higher for similar resolution | Lower, but with more compromises |
| Best for | Daily diagnostic work with high-volume scanning; users who prioritize image quality and runtime over wireless features | Users who value brand ecosystem and support network; wireless workflow integration | Occasional use; ultra-portability; users who prefer smartphone-based tools |
In simple terms, the TC004 trades wireless features and brand prestige for a higher sensor resolution and longer battery life at a mid-range price. FLIR handhelds often bring a more mature ecosystem, broader accessory options, and deep software support, but users typically pay more for comparable resolution. Phone-based thermal modules can be great for occasional checks or tight budgets, yet they depend on phone batteries, screens, and apps, and they rarely match the ergonomics and durability of a dedicated handheld like the TC004.
TC004 vs TC004 Lite: Which One Makes More Sense?
The TC004 Lite variant usually offers a higher maximum temperature range along with other spec trade-offs, and it is better suited to users who regularly monitor hotter industrial equipment. In return, it may handle resolution and zoom behavior differently from the standard TC004, so the overall balance of features shifts slightly.
For most electricians, HVAC technicians, and home inspectors working in residential and light commercial environments, the standard TC004 delivers a more than adequate temperature range, excellent resolution, and long battery life. Those who frequently work near very high-temperature processes should examine the Lite’s specifications carefully and compare them side by side before deciding.
Price, Warranty & Long-Term Value
The TC004 typically sits in the mid-range among handheld thermal cameras: more expensive than entry-level phone modules and ultra-budget imports, but noticeably cheaper than many branded professional handhelds with similar or lower resolution. For users who rely on a thermal camera weekly or daily, the cost is easier to justify than for occasional hobby use.
In return, buyers get a rugged IP54-rated housing, a 256 × 192 sensor, up to 12 hours of runtime, and practical measurement and reporting tools. For many tradespeople, this combination represents a strong value proposition compared with stepping up to much pricier pro models.
The camera typically ships with a manufacturer warranty (check the exact term in the listing), along with access to firmware and software updates via TOPDON’s official support channels. With reasonable handling and periodic firmware/software checks, the TC004 should provide several years of reliable service in most professional environments.
Pricing checked: February 2026. Thermal camera prices change frequently based on promotions and availability, so always confirm the live price and any bundle contents (microSD size, case, additional accessories) before purchasing.
- High Resolution, Accurate Measurement: TOPDON TC004 Thermal Camera has 256x192 ultra-high resolution, thermal sensitivity <40mk, temperature resolution up to ±1°F, three temperature measurement modes center point / maximum temperature / minimum temperature, fast 25Hz frame rate and temperature range -4°F to 662°F, high resolution. Accurate measurement allows you to detect potential problems early and diagnose problems reliably!
- Free PC Software Upgrade: TOPDON TC004 Infrared Camera can be connected to a Windows PC (Not compatible with Mac) via USB for online analysis, real-time detection of object temperature changes, support for 3D imaging, point-line surface temperature measurement. Up to 32GB memory, support memory expansion, you can also stream the device in real time to a laptop or computer for offline temperature measurement, analyze the saved images, export data reports, and dig deeper into the data.
- Support Video Recording, Super Battery Life: powerful one-touch photo viewing and video recording function, so you can share the photos taken to your computer. The built-in 5000Ah rechargeable Li-ion Battery can support up to 12 hours of continuous operation, with a long life span that allows you to handle high-intensity measurement work with ease. Greatly meet the power monitoring, boiler inspection, house maintenance, circuit testing, HVAC testing and other types of use scenarios!
- Multiple Functions, More professional: TC004 Thermal Imager with high and low temperature alarm function, when the temperature is out of range, the audio alarm and warning light will remind you. Including 4 kinds of color palette, choose the ideal color scale for your work - white hot, black hot, iron red, rainbow. LED work light allows you to reach the dark and hard to reach areas, automatic shutdown function to ensure that you will not run out of power in the important work.
- Sturdy and durable: TOPDON TC004's ergonomic grip handle makes it easy to grasp, and it is designed with a tripod screw hole 1/4 adapter - convenient and fast installation and fixing, fixed point measurement, 2 meters drop resistance design. Provide 1-year warranty and lifetime technical support. The package includes: thermal imager*1, 32G memory card*1, data cable*1, protection bag*1, manual*1, 5V charger*1.
Final Verdict: Should You Buy the TOPDON TC004?
The TOPDON TC004 combines high-resolution thermal imaging, a wide field of view, and long battery life in a rugged, job-ready package. It is clearly positioned for working professionals and serious DIYers who want a reliable standalone tool, not just a smartphone toy. Despite lacking Wi‑Fi/Bluetooth and maxing out at 350 °C, it hits a sweet spot for the type of work most electricians, HVAC technicians, and home inspectors actually do.
What Stands Out
- Strong image quality and sensitivity: 256 × 192 resolution with good NETD makes it easier to see subtle issues.
- Excellent runtime and durability: Up to 12 hours of battery life with IP54 and drop resistance for real job sites.
- Practical tools and PC software: Measurement markers, alarms, and analysis/reporting software support professional workflows.
Things to Know Before Buying
- No wireless transfer: All file transfers rely on USB-C or SD card; there is no Wi‑Fi or Bluetooth.
- 350 °C temperature ceiling: Adequate for most trade work but not ideal for extreme industrial processes.
- Learning curve: Correct emissivity settings and interpretation take practice, especially for new users.
For electricians, HVAC techs, and home inspectors who want a serious thermal camera without spending pro-lab money, the TOPDON TC004 is one of the most convincing mid-range handheld options currently available.
Check the TOPDON TC004 on Amazon
Ready to add a capable thermal camera to the toolkit? See today’s price, current deals, and customer reviews here:
TOPDON TC004 FAQs
What is the resolution of the TOPDON TC004?
The TOPDON TC004 uses a 256 × 192 infrared sensor, enhanced through image processing to an effective 320 × 240 image. This delivers noticeably sharper detail than 160 × 120 budget cameras, making breaker labels, pipe edges, and structural elements easier to distinguish. The higher resolution is particularly valuable when scanning electrical panels or checking insulation coverage where small differences matter.
Can the TOPDON TC004 be used for professional home inspections?
Yes, the TC004 is well suited to many aspects of professional home inspection work. It can highlight missing insulation, thermal bridges, drafts around windows and doors, underperforming radiators, and underfloor heating issues. While thermal images alone cannot confirm moisture, the camera is excellent for spotting suspicious temperature patterns that can then be followed up with moisture meters and invasive checks where necessary. Best results typically occur when there is a meaningful indoor/outdoor temperature difference.
Does the TOPDON TC004 work with a PC for reports?
The TC004 connects to a PC via USB-C and is supported by TOPDON’s analysis and reporting software. Images can be imported, re-colored, annotated, and analyzed using spot, line, and area tools before being exported into PDFs or integrated into broader inspection reports. This workflow suits trades and inspectors who prefer to compile polished deliverables for clients after returning from site work.
What is the temperature range and accuracy of the TC004?
The TC004 measures from around -20 to 350 °C (-4 to 662 °F), comfortably covering everyday electrical, HVAC, plumbing, and building diagnostics tasks. Accuracy is typically ±2 °C or ±2% of the reading, which is sufficient for identifying dangerous hotspots and energy-wasting cold areas. For most users, relative differences between components are far more important than exact decimal accuracy, and the TC004 handles that style of comparison very well.
Is the TOPDON TC004 waterproof or drop-proof?
The TC004 carries an IP54 rating, meaning it is protected against dust and water splashes from any direction but is not designed for immersion. It is also rated for drops of around 2 meters, making it resilient enough for typical job-site mishaps such as being knocked off a ladder or workbench. Reasonable care is still important, but the camera is built to handle more abuse than delicate consumer electronics.
How long does the battery last on a full charge?
The internal battery delivers up to roughly 12 hours of runtime, depending on usage patterns and ambient temperature. In practical terms, that translates into multiple home inspections or a full day of intermittent use on a construction site. Many users find they can simply charge it overnight and not worry about battery levels during normal shifts.
How does the TOPDON TC004 compare to cheaper phone-based thermal cameras?
Compared with cheaper phone-based thermal cameras, the TC004 delivers higher resolution, a more ergonomic pistol-grip form factor, and complete independence from phone batteries, screens, and operating systems. Phone modules can make sense for occasional checks or tight budgets, especially when portability is the top priority. However, for regular professional work, the TC004’s dedicated display, long runtime, and rugged housing make it a more dependable and comfortable everyday tool.
